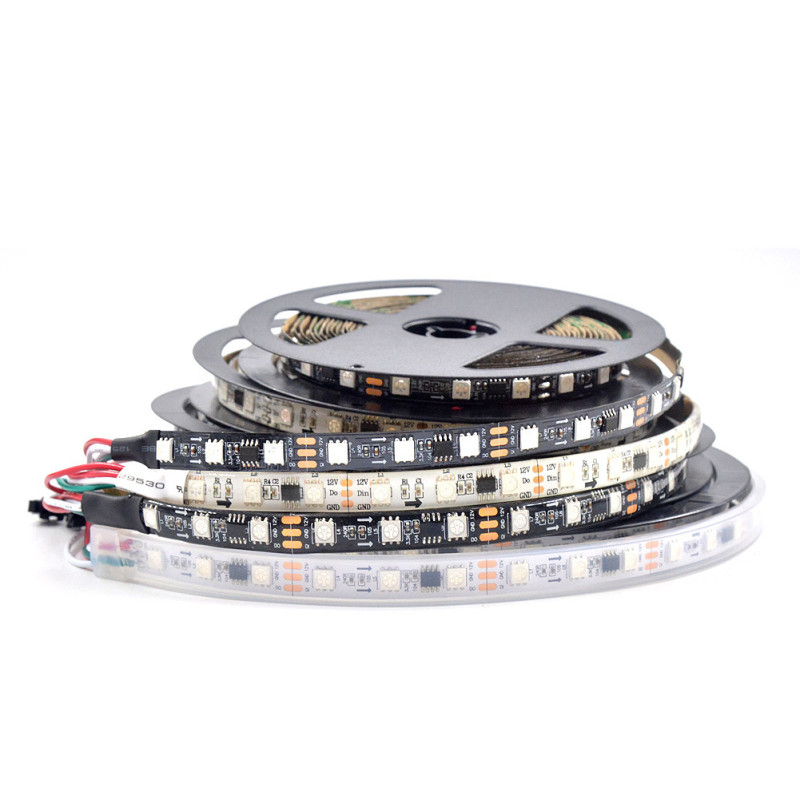

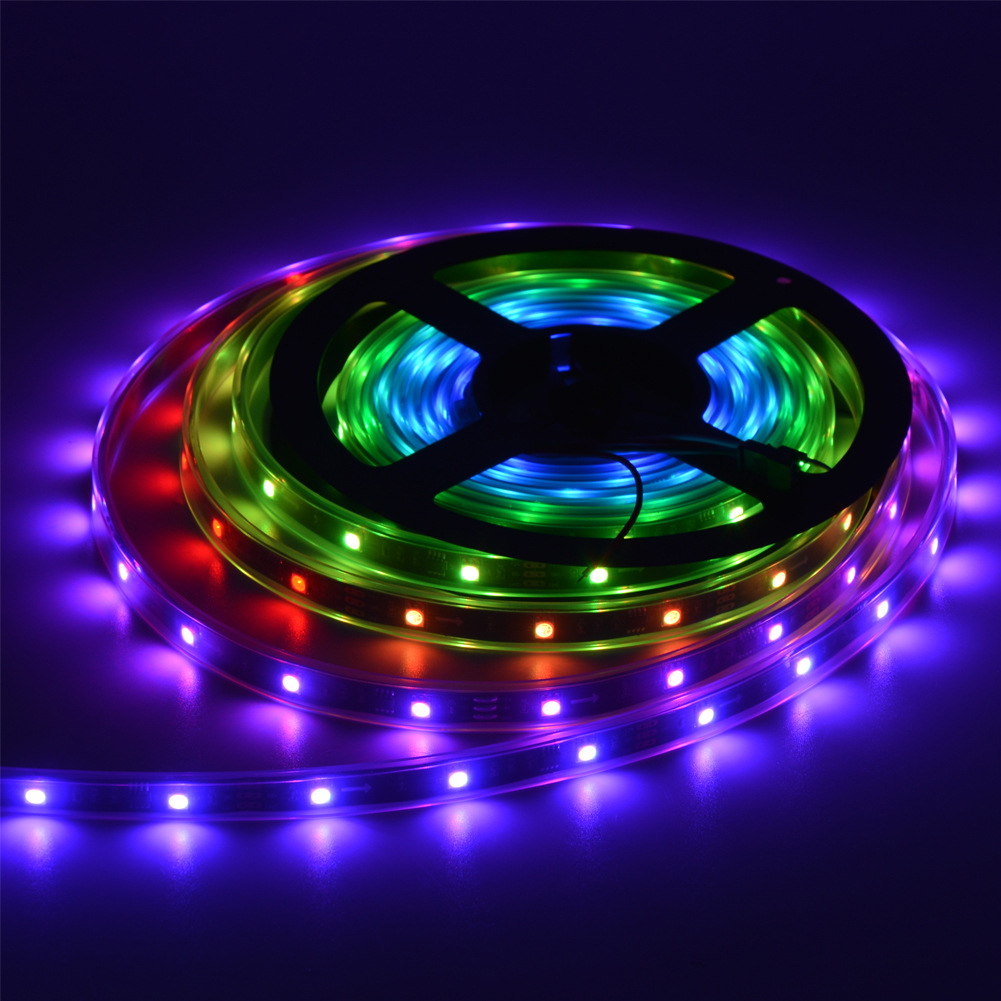

TM1812 External IC Pixel LED Strip

Specifications:

Item type: TM1812 Pixel LED Strip Light

LED QTY: 30/60/90/120 leds/m

Input Voltage: 12V

Power: 9W/m

IC Type: External IC TM1812

Pixel Point: 30

IP rate: IP20/65/67/68

Bean Angel: 120

Emitting Color: RGB/RGBW Changeable

Working Temp: -20℃~40℃

Working Lifetime: 50000 hours

PCB color: White/Black

PCB Board Width: 10/12mm

OEM/ODM: Yes

Packing: 5m/roll

Product Feature:

1.Pixel Colors changing

2.Low power consumption,energy saving

3.environmental PVC Glue sealing,it's safe and environmental friendly.

4.It's flexible and can be fixed on concave & convex surface accordingly.

5.Cutting unit is 10cm,can be cut  & install easily as your request.

Application:

Used for indoor & outdoor decorative lighting: house,supermarket,garden,hotel,KTV,wine bar etc.

Check below information and choose the suitable pixel led strip!

RGB or RGBW?

5V, 12V or 24V?

Breakpoint transmisson or not?

IC Type: Pixel LED Strip Light Description

WS2811:  External IC, 12V 3LEDs/unite, 3Pin (VCC DATA GND)

No breakpoint transmission

UCS1903: External IC, 12V 3LEDs/unit 24V 6LEDs/unit, 3Pin (VCC DATA GND)

No breakpoint transmission

WS2812B: Built-in IC, 5V 1LEDs/unit, 3Pin (VCC DATA GND)

No breakpoint transmission

SK6812: Built-in IC, 5V 1LEDs/unit 12V 3LEDs/unit 24V 6LEDs/unit, 3Pin (VCC DATA GND),

No breakpoint transmission

SK9822: Built-in IC 5V 1LEDs/unit, 12V 3LEDs/UNIT, 24V 6LEDs/unit, 3Pin(VCC DATA GND)

No Breakpoint Transmission.

WS2818: External IC, 12V 3LEDs/unit, 4Pin (VCC DATA1 DATA2 GND)

Yes breakpoint transmission

TM1934: External IC, 5V 1LEDs/unit 12V 3LEDs/unit 24V 6LEDs/unit, 4Pin (VCC DATA1 DATA2 GND)

Yes breakpoint transmission

WS2813: Built-in IC, 5V 1LEDs/unit, 4Pin (VCC DATA1 DATA2 GND),

Yes breakpoint transmission

CS8812: Built-in IC, 12V 1LEDs/unit, 4Pin (VCC DATA1 DATA2 GND)

Yes breakpoint transmission

DMX512: External IC, 12V 3LEDs/unit 24V 6LEDs/unit, 5Pin (VCC DATA1 DATA2 ADD GND)

Yes breakpoint transmission
